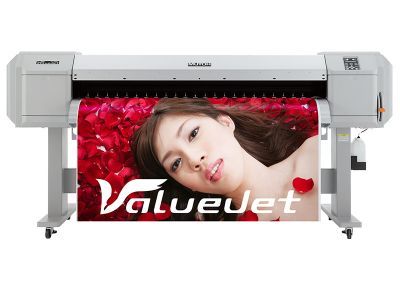

VJ-1624X
VJ-1624X
Features:
-The 7th generation piezo print head
-Up to 4 color capability
-Variable dot technology and intelligent interweave printing technology
-2 steps head height adjustment
-The maximum printing width is 1615mm,the highest printing speed is 55sqm/H
-Equipped the automatic cutting function
-Easy daily maintenance.
Product specifications:
Product Model | VJ-1624X | |
Printing Tech | 7th Generation Micro Piezo Print Head Tech | |
Color | KMCY-4 colors | |
Print Head Nozzle Configuration | (180 nozzles×8 lines)×1 print head | |
Ink cartridge | 4 | |
Maximum Media Width | 1625mm | |
Maximum Print Width | 1615mm | |
Print Head Height | 1.5mm2.5mm(Adjustable) | |
Heating System | 3 | |
Printing Language | MH-GL、MH-GL/2、MH-RTL（RTL-PASS） | |
Printing Resolution | 1440/1080/ 720/ 540/ 360 DPI | |
Output Mode | Quality / Graphics / Banner/ Custom | |
Printing Resolution and Speed | 360×360dpi | 72㎡/h |
360×720dpi | 40㎡/h | |
540×360dpi | 27㎡/h | |
720×720dpi | 20㎡/h | |
720×1080dpi | 13.6㎡/h | |
720×1440dpi | 10㎡/h | |
1080×1080dpi | 9㎡/h | |
1080×1440dpi | 6.7㎡/h | |
1440×1440dpi | 5㎡/h | |
Media Core Diameter | 2/3 inches | |
Media Weight | 30Kg/80Kg(Optional) | |
Interface | Ethernet 100BASE-TX/10BASE-T | |
Memory | 256M | |
Power Supply | AC90～132V/AC198～264V（self-adaptive）；HZ：50/60Hz±1Hz | |
Power Output | Operation | ≤2300W |
Standby | ≤40W | |
Operating Environment | Temp：20－32℃；Humidity：40－60%（no condensation） | |
Dimension | 2698×886×1262(mm) | |
Weight | 173Kg | |
